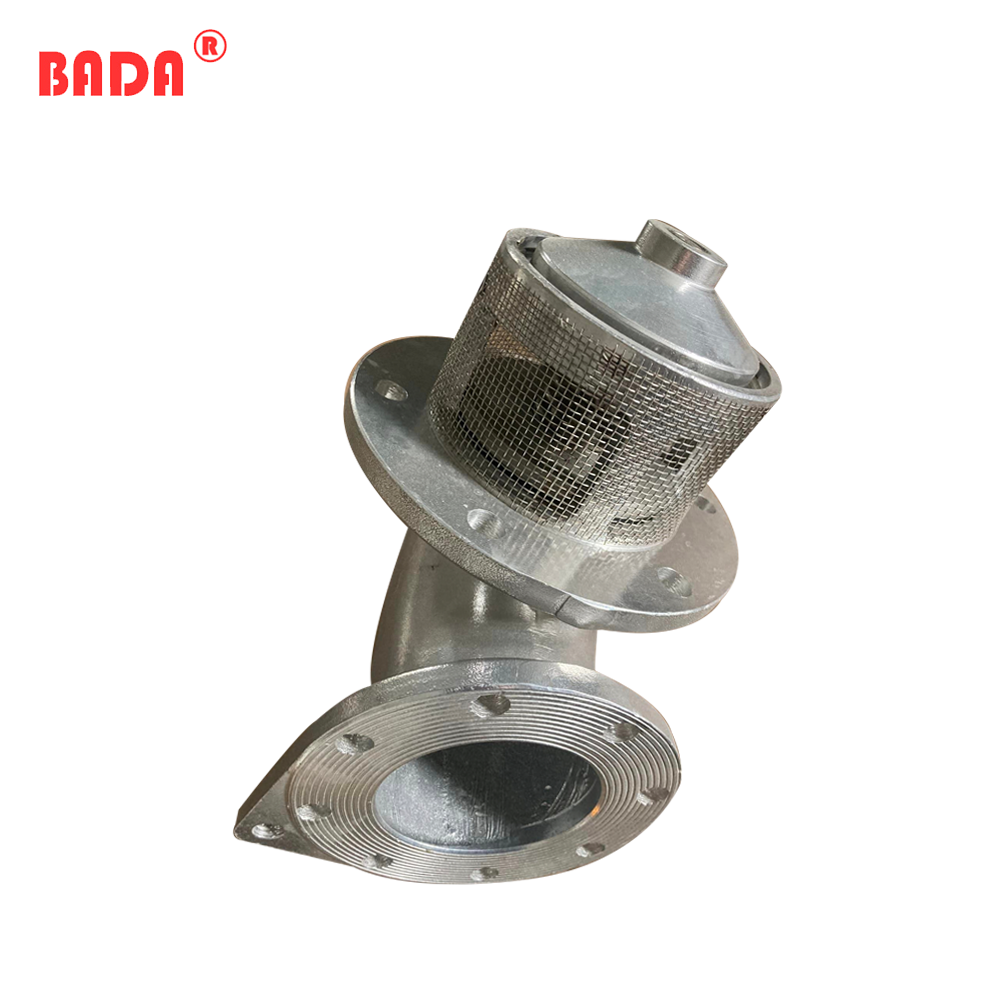

Emergency Foot Valve
Usage :
Emergency foot valve is installed on the bottom of the tanker with flange connection , and the seals extend into the tanker .
with perfect design , high flow ,high drop tomake the max benefit . Triple sealing on piston to reduce maintenance . Lightweight casting structure improves liquidity .
Material
Body : Aluminum
Seal : NBR
Shaft: Stainless Steel
Spring : Stainless Steel
Bushing Copper
Handle: Stainless steel , steel
Feature :
Aluminum alooy die-cast structure , anodized treatmemt.
Hydrodynamic design minimize pressure drop for high flow rate .
Fixed plug structure , simple and practical
Shear groove automatically cut off under emergency to prevent spillage .
Easy to be installed at compact place .
Utilizing pneumatic control valve to control the opening and closing .
Used for many sections tankers , separate loading and unloading for different fuel
According to EN 13083 standard , flange meets TTMA standard.
Technique data :
Size: 3"
Max Flow : 1500LPM
Working pressure : 0.6MPa
Operating method : Mechanical
Temp. Range: -20~70 ℃
Connection mode: Flanged
Medium : Fuel , Kerosene
